Deep Learing Fundamentals

import torch
from torch.autograd import Variable

inp = Variable(torch.randn(1,10)) # input data
model = nn.Linear(in_features=10,out_features=5,bias=True) ## linear model layer
model(inp)
model.weight

# Bias of the model
myLinear.bias

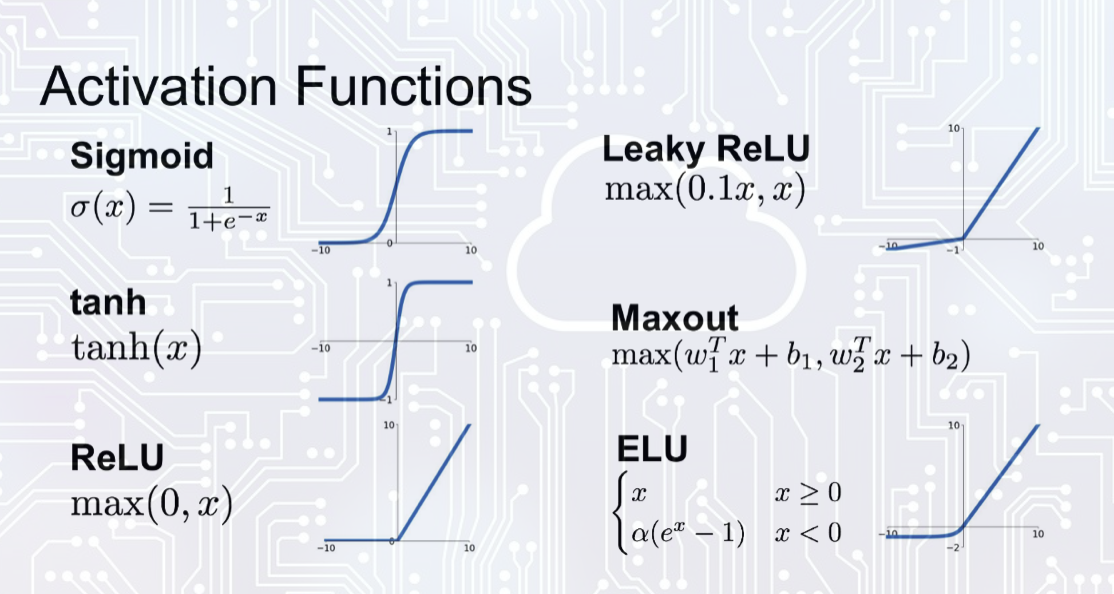

import matplotlib.pyplot as plt
import seaborn as sns
sns.set()
x = np.linspace(-10,10)
y = 1/(1+np.exp(x))
plt.plot(x,y)
plt.show()

x = np.linspace(-10,10)
y = np.tanh(x)
plt.plot(x,y)
plt.show()

# Import PyTorch
import torch
import torch.nn as nn
import torch.optim as optim
import numpy as np
omport matplotlib.pyplot as plt
import pandas as pd
# The following lines adjust the granularity of reporting.
pd.options.display.max_rows = 10
pd.options.display.float_format = "{:.1f}".format

import torch

# Initialize a tensor of size 5x3 filled with zeros
x = torch.Tensor(5, 3)
print(x)

# Create a tensor of size 5x4 with random values sampled from a uniform distribution
x = torch.rand(5, 4)
print(x)

# Element-wise addition of two tensors
x = torch.tensor([1, 2, 3, 4], dtype=torch.float32)
y = torch.tensor([5, 6, 7, 8], dtype=torch.float32)

result_add = x + y
print(result_add)

# Matrix multiplication (dot product)
matrix1 = torch.tensor([[1, 2], [3, 4]], dtype=torch.float32)
matrix2 = torch.tensor([[5, 6], [7, 8]], dtype=torch.float32)
result_matmul = torch.mm(matrix1, matrix2)
print(result_matmul)

x_reshape = x.view(1, 4)
print(x_reshape.shape)
print(x.shape)

if torch.cuda.is_available():
    device = torch.device("cuda")
    x_cuda = x.to(device)
    y_cuda = y.to(device)
    result_add_cuda = x_cuda + y_cuda
    print("The Cuda addition:",result_add_cuda)
elif torch.backends.mps.is_available():
    device = torch.device("mps")
    x_mps = x.to(device)
    y_mps = y.to(device)
    result_add_mps = x_mps + y_mps
    print("The MPS addition:",result_add_mps)
else:
    device = torch.device("cpu")
    x_cpu = x.to(device)
    y_cpu = y.to(device)
    result_add_cpu = x_cpu + y_cpu
    print("Using CPU addition:",result_add_cpu)

import torch
import torch.nn as nn
import torchviz
from torch.autograd import Variable

# Define some input data
x = Variable(torch.randn(1, 2), requires_grad=True)

# Define a simple computation
y = x *  2
z = y.sum()

# Visualize the computation graph
dot = torchviz.make_dot(z, params={"x": x})
dot.render("computational_graph", format="png")

# Print the computation graph
#print(dot)

import torch
import torch.autograd
import torchviz

# Create tensors in PyTorch
x = torch.tensor(2.0, dtype=torch.float32, requires_grad=True)
y = torch.tensor(3.0, dtype=torch.float32, requires_grad=True)

# Perform multiple operations
a = x * y
b = torch.sin(a)
c = torch.exp(b)
d = c / (x + y)

# Manually create a PyTorch computation graph
d.backward()

# Visualize the entire computational graph
dot = torchviz.make_dot(d, params={"x": x, "y": y, "a": a, "b": b, "c": c})
dot.render("computational_graph2", format="png")

# Print the results directly
print("x:", x.item())
print("y:", y.item())
print("d:", d.item())

import torch
import torch.nn as nn
inp = torch.randn(1,10)
model  = nn.Linear(in_features=10,
                   out_features=5, bias=True)
model(inp)

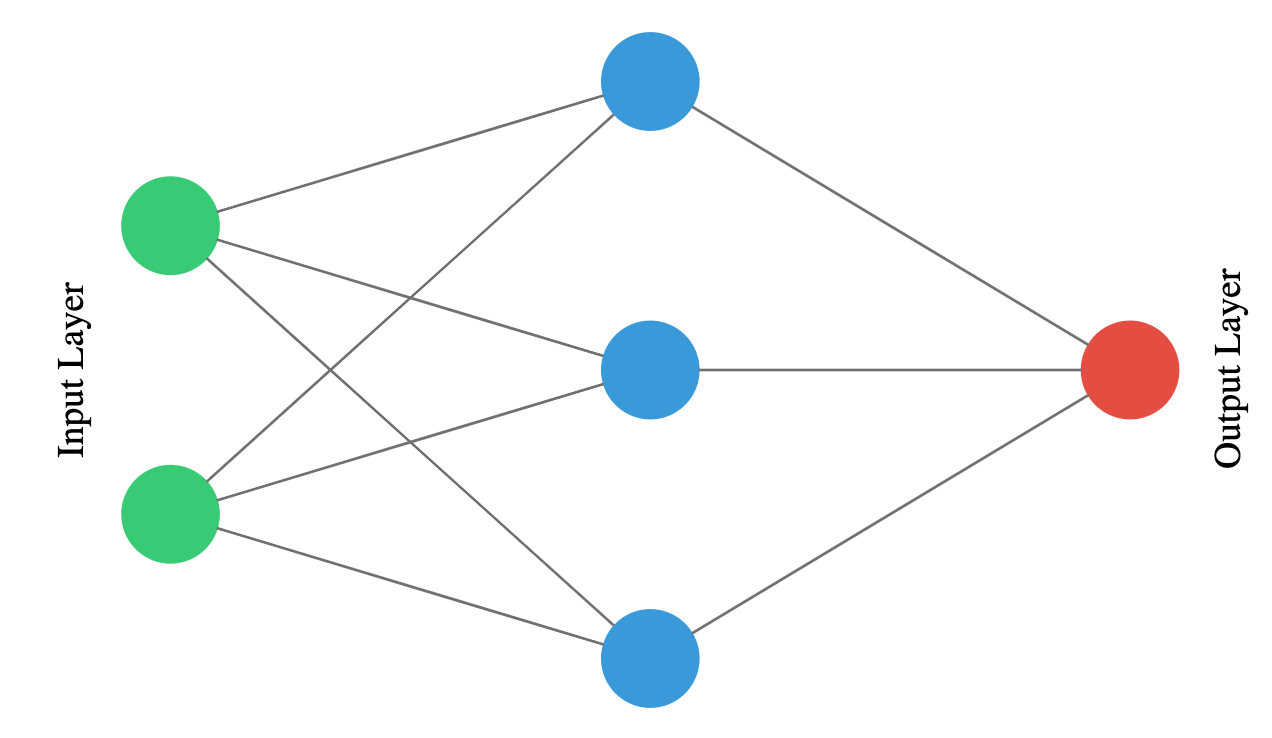

import torch
import torch.nn as nn

# Define the neural network architecture
class ANN(nn.Module):
    def __init__(self):
        super(ANN, self).__init__()
        self.hidden_layer = nn.Linear(1, 3)  # Input size: 1, Output size: 3
        self.output_layer = nn.Linear(3, 1)  # Input size: 3, Output size: 1

    def forward(self, x):
        x = torch.relu(self.hidden_layer(x))
        x = self.output_layer(x)
        return x

# Instantiate the model
model = ANN()
print(model)

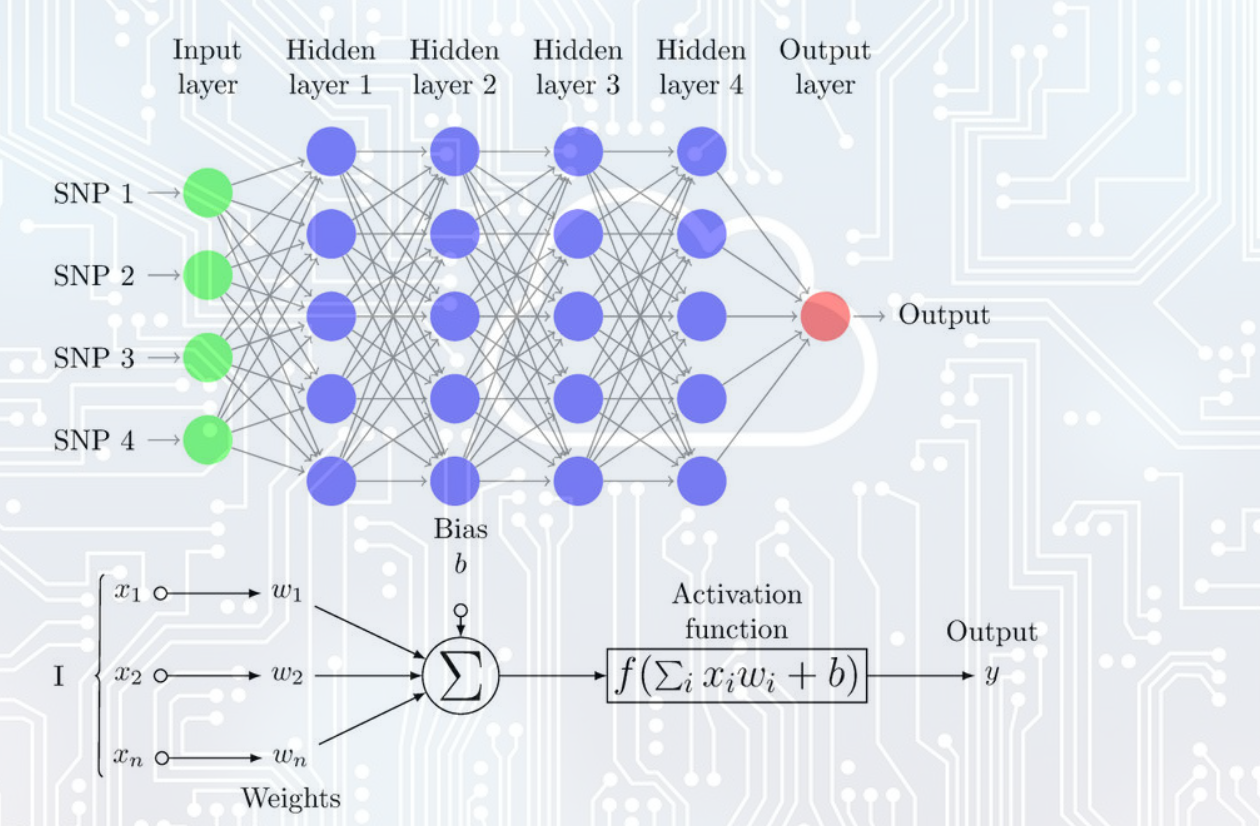

class MLP(nn.Module):
    def __init__(self):
        super(MLP, self).__init__()
        self.layer1 = nn.Linear(8, 24)
        self.relu1 = nn.ReLU()
        self.layer2 = nn.Linear(24, 12)
        self.relu2 = nn.ReLU()
        self.layer3 = nn.Linear(12, 6)
        self.relu3 = nn.ReLU()
        self.layer4 = nn.Linear(6, 1)
    def forward(self, x):
        x = self.layer1(x)
        x = self.relu1(x)
        x = self.layer2(x)
        x = self.relu2(x)
        x = self.layer3(x)
        x = self.relu3(x)
        x = self.layer4(x)
        return x

model = MLP()
device = 'cuda' if torch.cuda.is_available() else ('mps' if torch.backends.mps.is_available() else 'cpu')
# Check the selected device
print("Selected device:", device)
model.to(device)

import numpy as np
import ase
from ase.calculators.lj import LennardJones
import matplotlib.pyplot as plt
from dscribe.descriptors import SOAP

# Initialize SOAP descriptor
soap = SOAP(
    species=["H"],
    periodic=False,
    r_cut=5.0,
    sigma=0.5,
    n_max=3,
    l_max=0,
)

# Generate data for 200 samples with distances from 2.5 to 5.0 Å
n_samples = 200
traj = []
n_atoms = 2
energies = np.zeros(n_samples)
forces = np.zeros((n_samples, n_atoms, 3))
distances = np.linspace(2.5, 5.0, n_samples)

for i, d in enumerate(distances):
    # Create two hydrogen atoms separated by distance d along x-axis
    atoms = ase.Atoms('HH', positions=[[-0.5 * d, 0, 0], [0.5 * d, 0, 0]])
    atoms.set_calculator(LennardJones(epsilon=1.0, sigma=2.9))
    traj.append(atoms)

    energies[i] = atoms.get_total_energy()
    forces[i] = atoms.get_forces()

# Validate energies by plotting against distance
plt.figure(figsize=(8,5))
plt.plot(distances, energies, label="Energy")
plt.xlabel("Distance (Å)")
plt.ylabel("Energy (eV)")
plt.title("Lennard-Jones Energies vs Distance")
plt.grid(True)
plt.savefig("Lennard-Jones_Energies_vs_Distance.png")
plt.show()

# Compute SOAP descriptors and their analytical derivatives with respect to atomic positions
# The center is fixed at the midpoint between the two atoms
derivatives, descriptors = soap.derivatives(
    traj,
    centers=[[[0, 0, 0]]] * n_samples,
    method="analytical"
)

# Save datasets for training
np.save("r.npy", distances)
np.save("E.npy", energies)
np.save("D.npy", descriptors)
np.save("dD_dr.npy", derivatives)
np.save("F.npy", forces)

import numpy as np
import torch
from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split

# Set random seed for reproducibility
torch.manual_seed(7)

# Load dataset from saved numpy files
D_numpy = np.load("D.npy")[:, 0, :]            # SOAP descriptors: one center per sample
E_numpy = np.load("E.npy")[..., np.newaxis]    # Energies, reshaped to (n_samples, 1)
F_numpy = np.load("F.npy")                      # Forces
dD_dr_numpy = np.load("dD_dr.npy")[:, 0, :, :, :]  # Descriptor derivatives for one SOAP center
r_numpy = np.load("r.npy")                      # Distances

n_samples, n_features = D_numpy.shape

# Select equally spaced indices for training set
n_train = 30
idx = np.linspace(0, n_samples - 1, n_train).astype(int)

D_train_full = D_numpy[idx]
E_train_full = E_numpy[idx]
F_train_full = F_numpy[idx]
dD_dr_train_full = dD_dr_numpy[idx]
r_train_full = r_numpy[idx]

# Standardize descriptors (mean=0, std=1) based on training data
scaler = StandardScaler().fit(D_train_full)
D_train_full = scaler.transform(D_train_full)
D_whole = scaler.transform(D_numpy)

# Scale descriptor derivatives by the same standard deviation factors
scale_factors = scaler.scale_[None, None, None, :]
dD_dr_train_full = dD_dr_train_full / scale_factors
dD_dr_whole = dD_dr_numpy / scale_factors

# Compute variance of energies and forces in the training set for loss weighting
var_energy_train = np.var(E_train_full)
var_force_train = np.var(F_train_full)

# Split training data into training and validation subsets (20% validation)
D_train, D_valid, E_train, E_valid, F_train, F_valid, dD_dr_train, dD_dr_valid = train_test_split(
    D_train_full,
    E_train_full,
    F_train_full,
    dD_dr_train_full,
    test_size=0.2,
    random_state=7
)

# Convert all data arrays to PyTorch tensors for model input
D_whole = torch.tensor(D_whole, dtype=torch.float32)
D_train = torch.tensor(D_train, dtype=torch.float32)
D_valid = torch.tensor(D_valid, dtype=torch.float32)
E_train = torch.tensor(E_train, dtype=torch.float32)
E_valid = torch.tensor(E_valid, dtype=torch.float32)
F_train = torch.tensor(F_train, dtype=torch.float32)
F_valid = torch.tensor(F_valid, dtype=torch.float32)
dD_dr_train = torch.tensor(dD_dr_train, dtype=torch.float32)
dD_dr_valid = torch.tensor(dD_dr_valid, dtype=torch.float32)

import torch
import torch.nn as nn

class FFNet(nn.Module):
    """
    Simple feed-forward neural network with:
    - One hidden layer
    - Normally initialized weights
    - Sigmoid activation
    - Linear output layer
    """
    def __init__(self, n_features, n_hidden, n_out):
        super(FFNet, self).__init__()
        self.linear1 = nn.Linear(n_features, n_hidden)
        nn.init.normal_(self.linear1.weight, mean=0, std=1.0)
        self.activation = nn.Sigmoid()
        self.linear2 = nn.Linear(n_hidden, n_out)
        nn.init.normal_(self.linear2.weight, mean=0, std=1.0)

    def forward(self, x):
        x = self.linear1(x)
        x = self.activation(x)
        x = self.linear2(x)
        return x

def energy_force_loss(E_pred, E_true, F_pred, F_true):
    """
    Combined loss function including energy and force mean squared errors,
    normalized by their respective training variances to balance their contributions.
    """
    energy_loss = torch.mean((E_pred - E_true) ** 2) / var_energy_train
    force_loss = torch.mean((F_pred - F_true) ** 2) / var_force_train
    return energy_loss + force_loss

# Initialize the model with desired architecture
model = FFNet(n_features, n_hidden=5, n_out=1)

# Use Adam optimizer for parameter updates
optimizer = torch.optim.Adam(model.parameters(), lr=1e-2)

# Training parameters
n_max_epochs = 5000
batch_size = 2
patience = 20          # Early stopping patience
i_worse = 0
old_valid_loss = float("Inf")
best_valid_loss = float("Inf")

# Enable gradient calculation for validation descriptors (needed for force predictions)
D_valid.requires_grad = True

for epoch in range(n_max_epochs):
    # Shuffle training data indices at the start of each epoch
    permutation = torch.randperm(D_train.size(0))

    for i in range(0, D_train.size(0), batch_size):
        indices = permutation[i:i + batch_size]

        # Select batch data and enable gradients for descriptors
        D_train_batch = D_train[indices]
        D_train_batch.requires_grad = True
        E_train_batch = E_train[indices]
        F_train_batch = F_train[indices]
        dD_dr_train_batch = dD_dr_train[indices]

        # Forward pass: predict energies
        E_train_pred_batch = model(D_train_batch)

        # Compute gradients of energy predictions with respect to input descriptors
        df_dD_train_batch = torch.autograd.grad(
            outputs=E_train_pred_batch,
            inputs=D_train_batch,
            grad_outputs=torch.ones_like(E_train_pred_batch),
            create_graph=True
        )[0]

        # Compute predicted forces by chain rule using descriptor derivatives
        F_train_pred_batch = -torch.einsum('ijkl,il->ijk', dD_dr_train_batch, df_dD_train_batch)

        # Backpropagation and optimization step
        optimizer.zero_grad()
        loss = energy_force_loss(E_train_pred_batch, E_train_batch, F_train_pred_batch, F_train_batch)
        loss.backward()
        optimizer.step()

    # Validation step to monitor loss and implement early stopping
    E_valid_pred = model(D_valid)
    df_dD_valid = torch.autograd.grad(
        outputs=E_valid_pred,
        inputs=D_valid,
        grad_outputs=torch.ones_like(E_valid_pred),
    )[0]

    F_valid_pred = -torch.einsum('ijkl,il->ijk', dD_dr_valid, df_dD_valid)
    valid_loss = energy_force_loss(E_valid_pred, E_valid, F_valid_pred, F_valid)

    if valid_loss < best_valid_loss:
        torch.save(model.state_dict(), "best_model.pt")
        best_valid_loss = valid_loss

    if valid_loss >= old_valid_loss:
        i_worse += 1
    else:
        i_worse = 0

    if i_worse > patience:
        print(f"Early stopping at epoch {epoch}")
        break

    old_valid_loss = valid_loss

    if epoch % 500 == 0:
        print(f"Finished epoch: {epoch} with loss: {loss.item()}")

# Load best model and switch to evaluation mode
model.load_state_dict(torch.load("best_model.pt"))
model.eval()

# Predict energies and forces on the entire dataset
E_whole = torch.tensor(E_numpy, dtype=torch.float32)
F_whole = torch.tensor(F_numpy, dtype=torch.float32)
dD_dr_whole = torch.tensor(dD_dr_whole, dtype=torch.float32)

D_whole.requires_grad = True
E_whole_pred = model(D_whole)
df_dD_whole = torch.autograd.grad(
    outputs=E_whole_pred,
    inputs=D_whole,
    grad_outputs=torch.ones_like(E_whole_pred),
)[0]
F_whole_pred = -torch.einsum('ijkl,il->ijk', dD_dr_whole, df_dD_whole)

# Detach predictions from the graph and convert to numpy arrays
E_whole_pred = E_whole_pred.detach().numpy()
E_whole = E_whole.detach().numpy()

# Save results for later analysis
np.save("r_train_full.npy", r_train_full)
np.save("E_train_full.npy", E_train_full)
np.save("F_train_full.npy", F_train_full)
np.save("E_whole_pred.npy", E_whole_pred)
np.save("F_whole_pred.npy", F_whole_pred)

import numpy as np
from matplotlib import pyplot as plt
from sklearn.metrics import mean_absolute_error

# Load data produced by the trained model
r_whole = np.load("r.npy")
r_train_full = np.load("r_train_full.npy")
E_whole = np.load("E.npy")
E_train_full = np.load("E_train_full.npy")
E_whole_pred = np.load("E_whole_pred.npy")
F_whole = np.load("F.npy")
F_train_full = np.load("F_train_full.npy")
F_whole_pred = np.load("F_whole_pred.npy")

# Sorting indices for consistent plotting
order = np.argsort(r_whole)

# Select force components for plotting
F_x_whole_pred = F_whole_pred[order, 0, 0]
F_x_whole = F_whole[:, 0, 0][order]
F_x_train_full = F_train_full[:, 0, 0]

# Create subplots sharing the x-axis: Energy and Forces vs Distance
fig, (ax1, ax2) = plt.subplots(2, 1, sharex=True, figsize=(10, 10))

# Plot energies: true vs predicted
ax1.plot(r_whole[order], E_whole[order], label="True", linewidth=3)
ax1.plot(r_whole[order], E_whole_pred[order], label="Predicted", linewidth=3)
ax1.set_ylabel('Energy (eV)', fontsize=15)
mae_energy = mean_absolute_error(E_whole_pred, E_whole)
ax1.text(0.95, 0.5, f"MAE: {mae_energy:.2f} eV", fontsize=16,
         horizontalalignment='right', verticalalignment='center', transform=ax1.transAxes)

# Plot forces: true vs predicted
ax2.plot(r_whole[order], F_x_whole, label="True", linewidth=3)
ax2.plot(r_whole[order], F_x_whole_pred, label="Predicted", linewidth=3)
ax2.set_xlabel('Distance (Å)', fontsize=15)
ax2.set_ylabel('Force (eV/Å)', fontsize=15)
mae_force = mean_absolute_error(F_x_whole_pred, F_x_whole)
ax2.text(0.95, 0.5, f"MAE: {mae_force:.2f} eV/Å", fontsize=16,
         horizontalalignment='right', verticalalignment='center', transform=ax2.transAxes)

# Highlight training points on both plots
ax1.scatter(r_train_full, E_train_full, marker="o", color="k", s=20,
            label="Training points", zorder=3)
ax2.scatter(r_train_full, F_x_train_full, marker="o", color="k", s=20,
            label="Training points", zorder=3)

# Add legend and adjust layout
ax1.legend(fontsize=12)
ax2.legend(fontsize=12)
plt.subplots_adjust(left=0.08, right=0.97, top=0.97, bottom=0.08, hspace=0)
# Save the plot to file with high resolution
plt.savefig("energy_force_comparison.png", dpi=300)
# Show the plot
plt.show()

import pandas as pd
import numpy as np
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader, TensorDataset
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler

df = pd.read_csv('data/wine-quality-white-and-red.csv')
df.head()

X = df.drop('type', axis=1)
y = df['type']

# Convert categorical values to numerical values using LabelEncoder
le = LabelEncoder()
y = le.fit_transform(y)

sc = StandardScaler()
X = sc.fit_transform(X)


trainX, testX, trainY, testY = train_test_split(X, y, test_size=0.2)


# Convert target variables to NumPy arrays and reshape
trainY = np.array(trainY).reshape(-1, 1)
testY = np.array(testY).reshape(-1, 1)

# Convert data to PyTorch tensors with the correct data type
X_train = torch.Tensor(trainX)
y_train = torch.Tensor(trainY)
X_test = torch.Tensor(testX)
y_test = torch.Tensor(testY)

# Define the ANN model

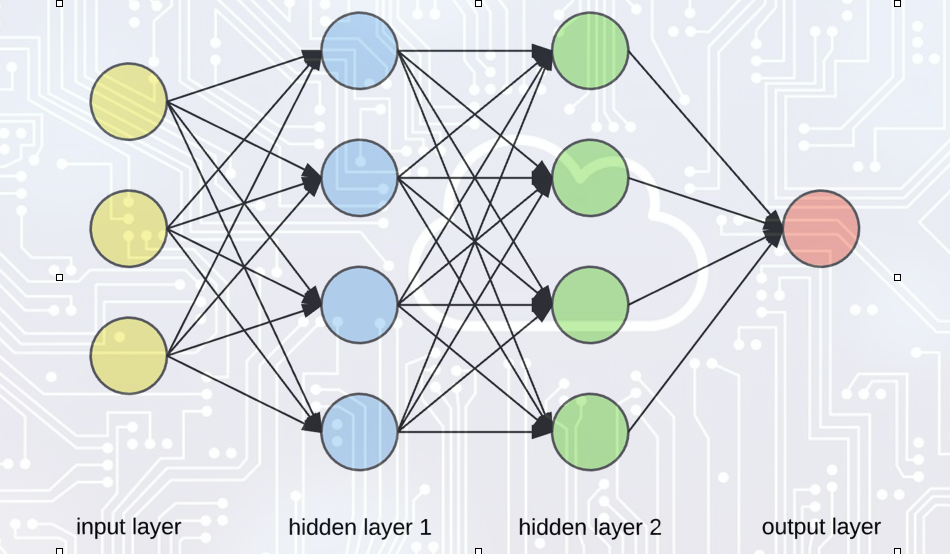

class ANN(nn.Module):
    def __init__(self, input_size, hidden_size, output_size):
        super(ANN, self).__init__()
        self.fc1 = nn.Linear(input_size, hidden_size)
        self.relu = nn.ReLU()
        self.fc2 = nn.Linear(hidden_size, output_size)
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        out = self.fc1(x)
        out = self.relu(out)
        out = self.fc2(out)
        out = self.sigmoid(out)
        return out

input_size = X_train.shape[1]
hidden_size = 64
output_size = 1
model = ANN(input_size, hidden_size, output_size)

device = torch.device("cuda:0" if torch.cuda.is_available() else "mps:0" if torch.backends.mps.is_available() else "cpu")
model.to(device)
# move the tensor to GPU device
X_train, y_train = X_train.to(device), y_train.to(device)
X_test, y_test = X_test.to(device), y_test.to(device)
print(model)

# Define the loss function and optimizer
criterion = nn.BCELoss() # binary cross-entropy loss
optimizer = optim.Adam(model.parameters(), lr=0.001)

# Create DataLoader
train_dataset = TensorDataset(X_train, y_train)
train_loader = DataLoader(train_dataset, batch_size=64, shuffle=True)

# Train the model
num_epochs = 100
for epoch in range(num_epochs):
    for inputs, targets in train_loader:
        inputs, targets = inputs.to(device), targets.to(device)
        outputs = model(inputs)
        loss = criterion(outputs, targets)
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

    if (epoch + 1) % 10 == 0:
        print(f'Epoch [{epoch + 1}/{num_epochs}], Loss: {loss.item():.4f}')

# Evaluate the model
model.eval()
with torch.no_grad():
    predictions = model(X_test)
    predictions = np.round(predictions.cpu().numpy()).astype(int).reshape(-1)
    accuracy = np.mean(predictions == y_test_tensor.cpu().numpy().reshape(-1))
    print(f'Accuracy: {accuracy:.4f}')

# ==============
# IMPORTS
# ==============
from mp_api.client import MPRester
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
from pymatgen.core import Structure
from sklearn.model_selection import train_test_split, KFold
from sklearn.preprocessing import StandardScaler
from sklearn.metrics import mean_squared_error, mean_absolute_error
from sklearn.impute import SimpleImputer
import torch
import torch.nn as nn
import torch.optim as optim
from torch.utils.data import DataLoader, TensorDataset

from dscribe.descriptors import SOAP

import warnings
warnings.filterwarnings("ignore")
sns.set(style="whitegrid")
plt.rcParams["figure.figsize"] = (10, 6)

# ==============
# SAFE R2 SCORE FUNCTION
# ==============
def safe_r2_score(y_true, y_pred):
    y_true, y_pred = np.array(y_true), np.array(y_pred)
    if len(y_true) != len(y_pred):
        raise ValueError("Inputs must have same length")
    ss_res = np.sum((y_true - y_pred) ** 2)
    ss_tot = np.sum((y_true - np.mean(y_true)) ** 2)
    if np.isclose(ss_tot,0):
        return 1.0 if np.isclose(ss_res,0) else 0.0
    return 1 - ss_res/ss_tot

# ===========
# 1. SET API KEY
# ===========
api_key = "FAOXV20YqTT2edzIRotOaC2ayHn10cDT"

# ===========
# 2. FETCH DATA (Summary + Structures Separately)
# ===========
print("🔍 Fetching formation energy and structures from Materials Project...")

with MPRester(api_key) as mpr:
    summary_docs = mpr.materials.summary.search(
        nelements=[2,5],
        energy_above_hull=(0, 0.1),
        fields=["material_id", "formula_pretty", "formation_energy_per_atom"]
    )

    records = []
    for doc in summary_docs:
        struct = mpr.get_structure_by_material_id(doc.material_id)
        if struct is None or doc.formation_energy_per_atom is None:
            continue
        records.append({
            "material_id": doc.material_id,
            "formula": doc.formula_pretty,
            "formation_energy_per_atom": doc.formation_energy_per_atom,
            "structure": struct
        })

df = pd.DataFrame(records)
#print(f"✅ Retrieved {len(df)} materials with structures and formation energies.")

# ===========
# 3. DSCRIBE SOAP FEATURIZATION
# ===========
print("🧪 Computing SOAP descriptors...")

soap = SOAP(
    species=None,  # Let DScribe infer species from structures automatically
    rcut=5.0,
    nmax=8,
    lmax=6,
    periodic=True,
    average="outer",
    sparse=False,
)

X_soap = []
for s in df['structure']:
    desc = soap.create(s)
    X_soap.append(desc)

X_soap = np.array(X_soap)
print(f"SOAP descriptor matrix shape: {X_soap.shape}")

# ===========
# 4. SPLIT FEATURES AND TARGET
# ===========
y = df['formation_energy_per_atom'].values.astype(np.float32)
X_train, X_test, y_train, y_test = train_test_split(X_soap, y, test_size=0.2, random_state=42)

# ===========
# 5. IMPUTE AND SCALE
# ===========
imputer = SimpleImputer(strategy='mean')
X_train_imputed = imputer.fit_transform(X_train)
X_test_imputed = imputer.transform(X_test)

scaler_X = StandardScaler()
X_train_scaled = scaler_X.fit_transform(X_train_imputed)
X_test_scaled = scaler_X.transform(X_test_imputed)

scaler_y = StandardScaler()
y_train_scaled = scaler_y.fit_transform(y_train.reshape(-1, 1)).flatten()
y_test_scaled = scaler_y.transform(y_test.reshape(-1, 1)).flatten()

# ===========
# 6. ANN MODEL DEFINITION
# ===========
class FormationEnergyPredictor(nn.Module):
    def __init__(self, input_size):
        super(FormationEnergyPredictor, self).__init__()
        self.model = nn.Sequential(
            nn.Linear(input_size, 256),
            nn.ReLU(),
            nn.BatchNorm1d(256),
            nn.Dropout(0.3),
            nn.Linear(256, 128),
            nn.ReLU(),
            nn.BatchNorm1d(128),
            nn.Dropout(0.2),
            nn.Linear(128, 64),
            nn.ReLU(),
            nn.Linear(64, 1),
        )
    def forward(self, x):
        return self.model(x)

# ===========
# 7. TRAINING FUNCTION
# ===========
def train_ann(X_train, y_train, X_val, y_val, n_epochs=100, batch_size=32):
    device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
    X_train_t = torch.tensor(X_train, dtype=torch.float32).to(device)
    y_train_t = torch.tensor(y_train, dtype=torch.float32).view(-1, 1).to(device)
    X_val_t = torch.tensor(X_val, dtype=torch.float32).to(device)
    y_val_t = torch.tensor(y_val, dtype=torch.float32).view(-1, 1).to(device)

    train_loader = DataLoader(TensorDataset(X_train_t, y_train_t), batch_size=batch_size, shuffle=True)
    model = FormationEnergyPredictor(X_train.shape[1]).to(device)
    criterion = nn.MSELoss()
    optimizer = optim.Adam(model.parameters(), lr=1e-3, weight_decay=1e-5)
    scheduler = optim.lr_scheduler.ReduceLROnPlateau(optimizer, 'min', patience=5, factor=0.5)

    best_val_loss = float('inf')
    best_model_state = model.state_dict()
    patience_counter = 0

    for epoch in range(n_epochs):
        model.train()
        epoch_loss = 0.0
        for xb, yb in train_loader:
            optimizer.zero_grad()
            pred = model(xb)
            loss = criterion(pred, yb)
            if torch.isnan(loss):
                print(f"NaN loss at epoch {epoch+1}, skipping batch")
                continue
            loss.backward()
            torch.nn.utils.clip_grad_norm_(model.parameters(), max_norm=1.0)
            optimizer.step()
            epoch_loss += loss.item() * xb.size(0)
        epoch_loss /= len(train_loader.dataset)

        model.eval()
        with torch.no_grad():
            val_pred = model(X_val_t)
            val_loss = criterion(val_pred, y_val_t).item()

        scheduler.step(val_loss)

        if val_loss < best_val_loss:
            best_val_loss = val_loss
            best_model_state = model.state_dict()
            patience_counter = 0
        else:
            patience_counter += 1
            if patience_counter >= 10:
                print(f"Early stopping at epoch {epoch+1}")
                break

    model.load_state_dict(best_model_state)
    model.eval()
    return model

# ===========
# 8. TRAIN AND EVALUATE
# ===========
print("\n🚀 Training the formation energy prediction model...")

X_train_final, X_val, y_train_final, y_val = train_test_split(
    X_train_scaled, y_train_scaled, test_size=0.1, random_state=42
)

model = train_ann(X_train_final, y_train_final, X_val, y_val, n_epochs=150)

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
model.to(device)
model.eval()

X_test_t = torch.tensor(X_test_scaled, dtype=torch.float32).to(device)
with torch.no_grad():
    y_pred_scaled = model(X_test_t).cpu().numpy().flatten()

y_pred = scaler_y.inverse_transform(y_pred_scaled.reshape(-1, 1)).flatten()

mse = mean_squared_error(y_test, y_pred)
rmse = np.sqrt(mse)
mae = mean_absolute_error(y_test, y_pred)
r2 = safe_r2_score(y_test, y_pred)

print(f"\nTest MSE: {mse:.4f}")
print(f"Test RMSE: {rmse:.4f}")
print(f"Test MAE: {mae:.4f}")
print(f"Test R2: {r2:.4f}")

plt.figure(figsize=(8, 6))
plt.scatter(y_test, y_pred, alpha=0.7, color='dodgerblue', edgecolor='k', s=60)
plt.plot([y_test.min(), y_test.max()], [y_test.min(), y_test.max()], 'r--', lw=2, label='Ideal')
plt.xlabel("True Formation Energy (eV/atom)")
plt.ylabel("Predicted Formation Energy (eV/atom)")
plt.title("True vs Predicted Formation Energy")
plt.legend()
plt.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()

# -*- coding: utf-8 -*-
"""
Garnet Formation Energy Prediction
Fixed for: 'list' object has no attribute 'shape'
Works with modern matminer, sklearn, pymatgen
"""

from __future__ import annotations

import warnings
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

# ----------------------------
# Safe matminer featurizers
# ----------------------------
from matminer.featurizers.composition import (
    ElementProperty,
    Stoichiometry,
    OxidationStates,
    ElectronAffinity,
    BandCenter,
    AtomicOrbitals,
)
try:
    from matminer.featurizers.composition import CohesiveEnergy
    HAS_COHESIVE = True
except ImportError:
    HAS_COHESIVE = False

# ML
from sklearn.neural_network import MLPRegressor
from sklearn.model_selection import KFold
from sklearn.metrics import mean_absolute_error, r2_score
from sklearn.preprocessing import StandardScaler
from sklearn.pipeline import Pipeline

# Pymatgen
from pymatgen.core import Composition


# ----------------------------
# Configuration
# ----------------------------
DATA_URL = "https://raw.githubusercontent.com/mesfind/datasets/master/garnet.csv"
TARGET_COLUMN = "FormEnergyPerAtom"
N_SPLITS = 5
RANDOM_STATE = 42

# Suppress warnings
warnings.filterwarnings("ignore", category=FutureWarning)
warnings.filterwarnings("ignore", category=UserWarning)
warnings.filterwarnings("ignore", category=RuntimeWarning)

plt.rcParams.update({
    "figure.figsize": (8, 6),
    "axes.grid": True,
    "grid.alpha": 0.3
})


# ----------------------------
# Load Dataset
# ----------------------------
def load_dataset(url: str) -> pd.DataFrame:
    df = pd.read_csv(url)
    df = df[df[TARGET_COLUMN] > -5].copy()
    print(f"📊 Loaded {len(df)} samples after filtering.")
    return df


# ----------------------------
# Create Formula: A₃C₂D₃O₁₂
# ----------------------------
def create_formula(row: pd.Series) -> str:
    def clean(ion: str) -> str:
        return ''.join(ch for ch in ion if ch.isalpha())
    a, c, d = clean(row["a"]), clean(row["c"]), clean(row["d"])
    return f"{a}3{c}2{d}3O12"


# ----------------------------
# Featurize Safely — Handle list → array conversion
# ----------------------------
def featurize_compositions(df: pd.DataFrame) -> tuple[pd.DataFrame, np.ndarray]:
    """Apply featurizers safely, converting list outputs to arrays."""
    df["formula"] = df.apply(create_formula, axis=1)
    df["composition"] = df["formula"].apply(Composition)

    featurizers = [
        Stoichiometry(),
        ElementProperty.from_preset("magpie"),
        OxidationStates(),
        ElectronAffinity(),
        BandCenter(),
        AtomicOrbitals(),
    ]
    if HAS_COHESIVE:
        featurizers.append(CohesiveEnergy())

    # Start with empty DataFrame
    X = pd.DataFrame(index=df.index)

    print("Applying featurizers...")
    for fz in featurizers:
        name = fz.__class__.__name__
        print(f"   {name}")
        try:
            # Prepare input as list of compositions
            input_data = df["composition"].tolist()

            # Fit and transform
            features = fz.fit_transform(input_data)

            # Fix: Ensure 2D numpy array
            if isinstance(features, list):
                features = np.array(features)
            if features.ndim == 1:
                features = features.reshape(-1, 1)  # Handle edge case

            # Get feature names
            try:
                labels = fz.feature_labels()
                if len(labels) != features.shape[1]:
                    labels = [f"{name}_{i}" for i in range(features.shape[1])]
            except Exception:
                labels = [f"{name}_{i}" for i in range(features.shape[1])]

            # Convert to DataFrame and concatenate
            temp_df = pd.DataFrame(features, index=df.index, columns=labels)
            X = pd.concat([X, temp_df], axis=1)

        except Exception as e:
            print(f"   Failed {name}: {e}")
            continue

    # Final cleanup
    X = X.select_dtypes(include=[np.number]).fillna(0).reset_index(drop=True)
    y = df[TARGET_COLUMN].values

    if X.shape[1] == 0:
        raise ValueError(" All featurizers failed. No features generated.")

    print(f"Feature matrix: {X.shape[0]} × {X.shape[1]}")
    return X, y


# ----------------------------
# ANN with Cross-Validation
# ----------------------------
def run_ann_cv(X: pd.DataFrame, y: np.ndarray) -> dict:
    print("\nStarting 5-fold cross-validation (ANN)...\n")

    kfold = KFold(n_splits=N_SPLITS, shuffle=True, random_state=RANDOM_STATE)
    maes, r2s = [], []

    model = Pipeline([
        ("scaler", StandardScaler()),
        ("mlp", MLPRegressor(
            hidden_layer_sizes=(128, 64),
            activation="relu",
            solver="adam",
            alpha=0.01,
            batch_size=16,
            max_iter=500,
            early_stopping=True,
            validation_fraction=0.1,
            n_iter_no_change=10,
            random_state=RANDOM_STATE,
            verbose=False
        ))
    ])

    for i, (train_idx, test_idx) in enumerate(kfold.split(X), 1):
        X_train = X.iloc[train_idx]
        X_test = X.iloc[test_idx]
        y_train = y[train_idx]
        y_test = y[test_idx]

        try:
            model.fit(X_train, y_train)
            pred = model.predict(X_test)
            mae = mean_absolute_error(y_test, pred)
            r2 = r2_score(y_test, pred)
            maes.append(mae)
            r2s.append(r2)
            print(f"   Fold {i}: MAE = {mae:.4f}, R² = {r2:.4f}")
        except Exception as e:
            print(f"   Fold {i} failed: {e}")

    results = {
        "ANN": {
            "MAE_mean": float(np.mean(maes)),
            "MAE_std": float(np.std(maes)),
            "R2_mean": float(np.mean(r2s)),
            "R2_std": float(np.std(r2s)),
        }
    }

    print(f"\nANN Performance")
    print(f"   MAE: {results['ANN']['MAE_mean']:.4f} ± {results['ANN']['MAE_std']:.4f} eV/atom")
    print(f"   R²:  {results['ANN']['R2_mean']:.4f} ± {results['ANN']['R2_std']:.4f}")
    return results


# ----------------------------
# Plot Results
# ----------------------------
def plot_results(results: dict):
    plt.figure(figsize=(6, 4))
    plt.bar(["ANN"], [results["ANN"]["MAE_mean"]],
            yerr=[results["ANN"]["MAE_std"]], capsize=5, color="#2ca02c", alpha=0.8)
    plt.ylabel("MAE (eV/atom)")
    plt.title("Formation Energy Prediction — ANN")
    plt.tight_layout()
    plt.show()


# ----------------------------
# Main
# ----------------------------
if __name__ == "__main__":
    print("Garnet Formation Energy Prediction\n")

    # Load data
    df = load_dataset(DATA_URL)

    # Featurize
    print("Featurizing compositions...")
    try:
        X, y = featurize_compositions(df)
    except ValueError as e:
        print(f"Featurization failed: {e}")
        raise

    # Train and evaluate
    results = run_ann_cv(X, y)

    # Plot
    plot_results(results)

    print("\nSuccess! Model trained and evaluated.")

# import PyTorch and its related packages
import torch as T
import torch.nn as nn
import torch.optim as optim
import torch.nn.functional as F
import torchvision
import torchvision.transforms as transforms
# set default device based on GPU's availability
device = torch.device("cuda:0" if torch.cuda.is_available() else "mps:0" if torch.backends.mps.is_available() else "cpu")
print(device)

transform = transforms.Compose(
    [transforms.ToTensor(),
     transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])

batch_size = 32
image_size = (32, 32, 3)

train_set = torchvision.datasets.CIFAR10(root='./data', train=True,
                                        download=True, transform=transform)
train_loader = T.utils.data.DataLoader(train_set, batch_size=batch_size,
                                          shuffle=True, num_workers=2)

test_set = torchvision.datasets.CIFAR10(root='./data', train=False,
                                       download=True, transform=transform)
test_loader = T.utils.data.DataLoader(test_set, batch_size=batch_size,
                                         shuffle=False, num_workers=2)

criterion = nn.CrossEntropyLoss()

class ConvNet(nn.Module):
    def __init__(self, num_classes=10):
        super(ConvNet, self).__init__()
        self.features = nn.Sequential(
            nn.Conv2d(3, 64, kernel_size=3, stride=1, padding=2),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(kernel_size=2, stride=2),
            nn.Conv2d(64, 128, kernel_size=3, stride=1, padding=2),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(kernel_size=2, stride=2),
        )
        self.classifier = nn.Sequential(
            nn.Dropout(),
            nn.Linear(128 * 9 * 9, 512),
            nn.ReLU(inplace=True),
            nn.Linear(512, 10),
        )

    def forward(self, x):
        x = self.features(x)
        x = x.view(x.size(0), 128 * 9 * 9)
        x = self.classifier(x)
        return x
net = ConvNet()
net.to(device)
print(net)

# also the optimizer
optimizer = optim.Adam(net.parameters(), lr=0.001)

train_loss = []
test_loss = []
train_acc = []
test_acc = []

for epoch in range(1, 33):  # loop over the dataset multiple times

    running_loss = .0
    correct = 0
    total = 0
    for i, data in enumerate(train_loader):
        # get the inputs
        inputs, labels = data
        if device == 'cuda':
            inputs, labels = inputs.to(device), labels.to(device)

        # reset the parameter gradients
        optimizer.zero_grad()

        # forward
        outputs = net(inputs)
        loss = criterion(outputs, labels)
        # backward
        loss.backward()
        # optimize
        optimizer.step()

        running_loss += loss.item()
        _, predicted = T.max(outputs.data, 1)
        total += labels.size(0)
        correct += (predicted == labels).sum().item()

    running_loss /= len(train_loader)
    train_loss.append(running_loss)
    running_acc = correct / total
    train_acc.append(running_acc)

    if epoch % 4 == 0:
        print('\nEpoch: {}'.format(epoch))
        print('Train Acc. => {:.3f}%'.format(100 * running_acc), end=' | ')
        print('Train Loss => {:.5f}'.format(running_loss))

    # evaluate on the test set
    # note this is usually performed on the validation set
    # for simplicity we just evaluate it on the test set
    with T.no_grad():
        correct = 0
        total = 0
        test_running_loss = .0
        for data in test_loader:
            inputs, labels = data
            if device == 'cuda':
                inputs, labels = inputs.to(device), labels.to(device)
            outputs = net(inputs)
            loss = criterion(outputs, labels)
            test_running_loss += loss.item()
            _, predicted = T.max(outputs.data, 1)
            total += labels.size(0)
            correct += (predicted == labels).sum().item()

        test_running_loss /= len(test_loader)
        test_loss.append(test_running_loss)
        test_running_acc = correct / total
        test_acc.append(test_running_acc)

        if epoch % 4 == 0:
            print('Test Acc.  => {:.3f}%'.format(100 * test_running_acc), end=' | ')
            print('Test Loss  => {:.5f}'.format(test_running_loss))

print('Finished Training')

# Plotting train and test loss
plt.figure(figsize=(12, 5))

# Subplot for Loss
plt.subplot(1, 2, 1)
plt.plot(range(1, 33), train_loss, label='Train Loss')
plt.plot(range(1, 33), test_loss, label='Test Loss')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.title('Train and Test Loss over Epochs')
plt.legend()
plt.grid(True)

# Subplot for Accuracy
plt.subplot(1, 2, 2)
plt.plot(range(1, 33), train_acc, label='Train Accuracy')
plt.plot(range(1, 33), test_acc, label='Test Accuracy')
plt.xlabel('Epochs')
plt.ylabel('Accuracy')
plt.title('Train and Test Accuracy over Epochs')
plt.legend()
plt.grid(True)
# Display the plots
plt.tight_layout()
plt.savefig("fig/loss_accuracy_CIFAR10.png")
plt.show()

# Define a function to show images
def imshow(inp, title=None):
    """Display image for Tensor."""
    inp = inp.numpy().transpose((1, 2, 0))
    mean = np.array([0.5, 0.5, 0.5])
    std = np.array([0.5, 0.5, 0.5])
    inp = std * inp + mean
    inp = np.clip(inp, 0, 1)
    plt.imshow(inp)
    if title is not None:
        plt.title(title)
    plt.pause(0.001)  # pause a bit so that plots are updated

# Define the class names for CIFAR-10
class_names = ['plane', 'car', 'bird', 'cat', 'deer', 'dog', 'frog', 'horse', 'ship', 'truck']

# Get a batch of training data
inputs, classes = next(iter(train_loader))

# Select only the first 10 images and labels
inputs = inputs[:10]
classes = classes[:10]

# Make a grid from the selected batch
out = torchvision.utils.make_grid(inputs, nrow=10)

# Display the images with correct titles
imshow(out, title=' '.join([class_names[x] for x in classes]))
plt.savefig("fig/class_labels_CIFAR10.png")
plt.show()

import torch as T
import torch.optim as optim
import torchvision.transforms as transforms
import torchvision.datasets as datasets
import torch.nn.functional as F
from torch.utils.data import DataLoader
import matplotlib.pyplot as plt

# Data augmentation
transform_train = transforms.Compose([
    transforms.RandomHorizontalFlip(),
    transforms.RandomCrop(32, padding=4),
    transforms.ToTensor(),
    transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5)),
])

transform_test = transforms.Compose([
    transforms.ToTensor(),
    transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5)),
])

# Load CIFAR-10 dataset
train_set = datasets.CIFAR10(root='./data', train=True,
                             download=True, transform=transform_train)
train_loader = DataLoader(train_set, batch_size=batch_size,
                          shuffle=True, num_workers=2)

test_set = datasets.CIFAR10(root='./data', train=False,
                            download=True, transform=transform_test)
test_loader = DataLoader(test_set, batch_size=batch_size,
                         shuffle=False, num_workers=2)

# Define your network (with dropout layers added)
class ConvNet(nn.Module):
    def __init__(self, num_classes=10):
        super(ConvNet, self).__init__()
        self.features = nn.Sequential(
            nn.Conv2d(3, 64, kernel_size=3, stride=1, padding=2),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(kernel_size=2, stride=2),
            nn.Conv2d(64, 128, kernel_size=3, stride=1, padding=2),
            nn.ReLU(inplace=True),
            nn.MaxPool2d(kernel_size=2, stride=2),
        )
        self.classifier = nn.Sequential(
            nn.Dropout(0.5),
            nn.Linear(128 * 9 * 9, 512),
            nn.ReLU(inplace=True),
            nn.Dropout(0.5),
            nn.Linear(512, num_classes),
        )

    def forward(self, x):
        x = self.features(x)
        x = x.view(x.size(0), 128 * 9 * 9)
        x = self.classifier(x)
        return x

# Initialize the network
net = ConvNet(num_classes=10)
device = 'cuda' if T.cuda.is_available() else 'cpu'
net.to(device)

# Define the criterion and optimizer with L2 regularization
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(net.parameters(), lr=0.001, weight_decay=1e-4)

# Learning rate scheduler
scheduler = optim.lr_scheduler.StepLR(optimizer, step_size=10, gamma=0.1)

train_loss = []
test_loss = []
train_acc = []
test_acc = []

early_stopping_threshold = 5
no_improvement_count = 0
best_test_loss = float('inf')

for epoch in range(1, 33):  # loop over the dataset multiple times

    running_loss = .0
    correct = 0
    total = 0
    net.train()
    for i, data in enumerate(train_loader):
        # get the inputs
        inputs, labels = data
        if device == 'cuda':
            inputs, labels = inputs.to(device), labels.to(device)

        # reset the parameter gradients
        optimizer.zero_grad()

        # forward
        outputs = net(inputs)
        loss = criterion(outputs, labels)
        # backward
        loss.backward()
        # optimize
        optimizer.step()

        running_loss += loss.item()
        _, predicted = T.max(outputs.data, 1)
        total += labels.size(0)
        correct += (predicted == labels).sum().item()

    running_loss /= len(train_loader)
    train_loss.append(running_loss)
    running_acc = correct / total
    train_acc.append(running_acc)

    if epoch % 4 == 0:
        print('\nEpoch: {}'.format(epoch))
        print('Train Acc. => {:.3f}%'.format(100 * running_acc), end=' | ')
        print('Train Loss => {:.5f}'.format(running_loss))

    # evaluate on the test set
    net.eval()
    with T.no_grad():
        correct = 0
        total = 0
        test_running_loss = .0
        for data in test_loader:
            inputs, labels = data
            if device == 'cuda':
                inputs, labels = inputs.to(device), labels.to(device)
            outputs = net(inputs)
            loss = criterion(outputs, labels)
            test_running_loss += loss.item()
            _, predicted = T.max(outputs.data, 1)
            total += labels.size(0)
            correct += (predicted == labels).sum().item()

        test_running_loss /= len(test_loader)
        test_loss.append(test_running_loss)
        test_running_acc = correct / total
        test_acc.append(test_running_acc)

        if epoch % 4 == 0:
            print('Test Acc.  => {:.3f}%'.format(100 * test_running_acc), end=' | ')
            print('Test Loss  => {:.5f}'.format(test_running_loss))

    scheduler.step()

    # Early stopping
    if test_running_loss < best_test_loss:
        best_test_loss = test_running_loss
        no_improvement_count = 0
    else:
        no_improvement_count += 1
        if no_improvement_count >= early_stopping_threshold:
            print('Early stopping at epoch {}'.format(epoch))
            break

print('Finished Training')

import torch
import torchvision
import torchvision.transforms as transforms
import torch.nn as nn
import torch.optim as optim
from torchvision import models

# Define data transformations
transform = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.ToTensor(),
    transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))
])

# Load CIFAR-10 dataset
train_set = torchvision.datasets.CIFAR10(root='./data', train=True,
                                         download=True, transform=transform)
train_loader = torch.utils.data.DataLoader(train_set, batch_size=32,
                                           shuffle=True, num_workers=2)

test_set = torchvision.datasets.CIFAR10(root='./data', train=False,
                                        download=True, transform=transform)
test_loader = torch.utils.data.DataLoader(test_set, batch_size=32,
                                          shuffle=False, num_workers=2)

# Define pretrained ResNet model
model = models.resnet18(pretrained=True)

# Freeze model parameters
for param in model.parameters():
    param.requires_grad = False

# Replace the final fully connected layer with new layer for CIFAR-10 classification
num_ftrs = model.fc.in_features
model.fc = nn.Linear(num_ftrs, 10)

# Define loss function and optimizer
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.fc.parameters(), lr=0.001)

# Train the model
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
model.to(device)

num_epochs = 10

train_loss = []
test_loss = []
train_acc = []
test_acc = []

for epoch in range(num_epochs):
    model.train()
    running_train_loss = 0.0
    correct = 0
    total = 0
    for inputs, labels in train_loader:
        inputs, labels = inputs.to(device), labels.to(device)
        optimizer.zero_grad()
        outputs = model(inputs)
        loss = criterion(outputs, labels)
        loss.backward()
        optimizer.step()
        running_train_loss += loss.item() * inputs.size(0)  # Update running train loss
        _, predicted = torch.max(outputs, 1)
        total += labels.size(0)
        correct += (predicted == labels).sum().item()
    train_loss.append(running_train_loss / len(train_loader.dataset))  # Append epoch's train loss
    train_acc.append(correct / total)

    # Validation
    model.eval()
    test_running_loss = 0.0
    correct = 0
    total = 0
    with torch.no_grad():
        for inputs, labels in test_loader:
            inputs, labels = inputs.to(device), labels.to(device)
            outputs = model(inputs)
            loss = criterion(outputs, labels)
            test_running_loss += loss.item() * inputs.size(0)  # Update running test loss
            _, predicted = torch.max(outputs, 1)
            total += labels.size(0)
            correct += (predicted == labels).sum().item()
    test_loss.append(test_running_loss / len(test_loader.dataset))  # Append epoch's test loss
    test_acc.append(correct / total)
    # Print epoch statistics
    print(f'Epoch [{epoch+1}/{num_epochs}], Train Loss: {train_loss[-1]:.4f}, Train Acc: {train_acc[-1]:.4f}, Test Loss: {test_loss[-1]:.4f}, Test Acc: {test_acc[-1]:.4f}')

print('Finished Training')

import matplotlib.pyplot as plt

# Plotting train and test loss
plt.figure(figsize=(12, 5))

# Subplot for Loss
plt.subplot(1, 2, 1)
plt.plot(range(1, num_epochs+1), train_loss, label='Train Loss')
plt.plot(range(1, num_epochs+1), test_loss, label='Test Loss')
plt.xlabel('Epochs')
plt.ylabel('Loss')
plt.title('Train and Test Loss over Epochs')
plt.legend()
plt.grid(True)

# Subplot for Accuracy
plt.subplot(1, 2, 2)
plt.plot(range(1, num_epochs+1), train_acc, label='Train Accuracy')
plt.plot(range(1, num_epochs+1), test_acc, label='Test Accuracy')
plt.xlabel('Epochs')
plt.ylabel('Accuracy')
plt.title('Train and Test Accuracy over Epochs')
plt.legend()
plt.grid(True)

# Display the plots
plt.tight_layout()
plt.savefig("fig/loss_accuracy3_CIFAR10.png")
plt.show()
