Overview
Questions
How do you import data into Python?
How do you create a DataFrame and access its contents?
How do you create simple plots?
Objectives
Describe the Python Data Analysis Library (Pandas).
Load Pandas.
Use
read_csvto read tabular data into Python.Describe what a DataFrame is in Python.
Access and summarize data stored in a DataFrame.
Define indexing as it relates to data structures.
Perform basic mathematical operations and summary statistics on data in a Pandas DataFrame.
Create simple plots.
Starting with Data
We can automate much of our research workflow using Python. It’s efficient to spend time building the code to perform these tasks because once it is built, we can use it over and over on different datasets that use a similar format. This makes our methods easy to reproduce and easy to adapt to new projects. We can also share our code with colleagues and they can replicate the same analysis.
Getting Set Up
To help the lesson run smoothly, let’s ensure everyone is in the same directory.
This should help us avoid path and file name issues. At this time please
navigate to the directory containing the course repository on your computer.
Before starting, be sure to pull the most recent changes from the repository using git pull origin master.
If you’re working in Jupyter Notebook be sure
that you start your notebook in the course-files/python directory. If you do not have this directory, please see the instructions in the Setup page.
You will want to use a Jupyter notebook or the Spyder IDE console to run this lesson. Both of these tools make it easy to view in-line plots.
To start a new Python session in a Jupyter notebook:
$ cd bioinfo-python
$ jupyter notebook
This typically brings up your default web browser and opens the Jupyter home screen.
Select New->Python 3. Name this session 03-pandas.
Note that you can also start a Jupyter notebook from the Anaconda Navigator launch screen. This will likely open the notebook in your home directory and you can then navigate through your file system to get to the bioinfo-python directory.
Alternatively, you can start a Spyder instance and navigate to the bioinfo-python directory from the console using Unix commands.
Our Data
For this lesson, we will be using the Portal Teaching data, a subset of the data from the ecological study by Ernst et al. (2009): Long-term monitoring and experimental manipulation of a Chihuahuan Desert ecosystem near Portal, Arizona, USA Specifically, we will be using files from the Portal Project Teaching Database. https://raw.githubusercontent.com/mesfind/bioinfo-python/gh-pages/data/python-novice-inflammation-data.zip
- This section will use the
surveys.csvfile that can be downloaded from thebioinfo-pythonfolder of the course repository. Pull from the course repository and change to tobioinfo-pythonor copy thesurveys.csvfile to the directory from which you would like to work.
In this lesson, we are studying the species and weight of (vertebrate) animals captured in plots in our study
area. The observed data are stored as a .csv file (comma-separated value): each row holds information for a
single animal, and the columns represent:
| Column | Description |
|---|---|
| record_id | Unique id for the observation |
| month | month of observation |
| day | day of observation |
| year | year of observation |
| plot_id | ID of a particular plot |
| species_id | 2-letter code |
| sex | sex of animal (“M”, “F”) |
| hindfoot_length | length of the hindfoot in mm |
| weight | weight of the animal in grams |
The first few rows of our first file look like this:
record_id,month,day,year,plot_id,species_id,sex,hindfoot_length,weight
1,7,16,1977,2,NL,M,32,
2,7,16,1977,3,NL,M,33,
3,7,16,1977,2,DM,F,37,
4,7,16,1977,7,DM,M,36,
5,7,16,1977,3,DM,M,35,
6,7,16,1977,1,PF,M,14,
7,7,16,1977,2,PE,F,,
8,7,16,1977,1,DM,M,37,
9,7,16,1977,1,DM,F,34,
Pandas in Python
One of the best options for working with tabular data in Python is to use the Python Data Analysis Library (a.k.a. Pandas). The Pandas library provides data structures, produces high quality plots with matplotlib and integrates nicely with other libraries that use NumPy (which is another Python library) arrays.
Python does not load all available libraries by default. We have to
add an import statement to our code in order to use library functions. To import
a library, we use the syntax import libraryName. If we want to give the
library a nickname to shorten the command, we can add as myNickName.
Import the pandas library using the common nickname pd is below.
import pandas as pd
If you’re using a Jupyter notebook for this lesson, it should look like this:
Remember that the import pandas as pd syntax means that we have given the alias pd to the pandas library. Thus, we don’t have to use the whole name when we invoke pandas functions.
Documenting Code
Let’s take a moment to talk about proper documentation again. One major benefit of using Jupyter Notebooks is that it gives us a way to provide clear and descriptive comments about our code. This is a good place to write a description of this notebook.
Add a new cell in your notebook and change the cell type to Markdown.
You can also use the arrow buttons to move this cell to the top of your notebook.
Now we can write a description of this notebook using Markdown.
# Lesson: Working with Pandas DataFrames in Python In-class tutorial on Pandas.
Reading CSV Data Using Pandas
We will begin by locating and reading our survey data which are in CSV format.
We can use Pandas’ read_csv function to pull the file directly into a
DataFrame.
What’s a DataFrame?
A DataFrame is a 2-dimensional data structure that can store data of different
types (including characters, integers, floating point values, factors and more)
in columns. It is similar to a spreadsheet or an SQL table or the data.frame in
R. A DataFrame always has an index (0-based). An index refers to the position of
an element in the data structure.
pd.read_csv("surveys.csv")
record_id month day year plot_id species_id sex hindfoot_length \
0 1 7 16 1977 2 NL M 32.0
1 2 7 16 1977 3 NL M 33.0
2 3 7 16 1977 2 DM F 37.0
3 4 7 16 1977 7 DM M 36.0
4 5 7 16 1977 3 DM M 35.0
5 6 7 16 1977 1 PF M 14.0
6 7 7 16 1977 2 PE F NaN
7 8 7 16 1977 1 DM M 37.0
... ... ... ... ... ... ... ... ...
35547 35548 12 31 2002 7 DO M 36.0
35548 35549 12 31 2002 5 NaN NaN NaN
weight
0 NaN
1 NaN
2 NaN
3 NaN
4 NaN
5 NaN
6 NaN
7 NaN
... ...
35547 51.0
35548 NaN
[35549 rows x 9 columns]
We can see that there were 33,549 rows parsed into a DataFrame. Each row has 9 columns. The first column is the index of the DataFrame. The index is used to identify the position of the data, but it is not an actual column of the DataFrame (it is not labeled).
It looks like the read_csv function in Pandas read our file properly. However, we haven’t saved any data to memory, and we cannot work with it until we do that.
We need to assign the DataFrame to a variable.
Remember that a variable is a name for a value, such as x,
or data. We can create a new object with a variable name by assigning a value to it using the = operator.
Let’s call the imported survey data df:
df = pd.read_csv("surveys.csv")
Notice when you assign the imported DataFrame to a variable, Python does not
produce any output on the screen. We can print the value of the df
object by typing its name into the Python command prompt. This will print the data frame just like above.
df
Inspecting Our Species Survey DataFrame
Now we can start working with our data. First, let’s check the data type of the
data stored in df using the type function. The type function and
__class__ attribute tell us that df is <class 'pandas.core.frame.DataFrame'>.
type(df)
pandas.core.frame.DataFrame
The output is the same if you use this:
df.__class__
pandas.core.frame.DataFrame
We can also enter df.dtypes at our prompt to view the data type for each
column in our DataFrame. int64 represents numeric integer values - int64 cells
cannot store decimals. object represents strings (letters and numbers). float64
represents numbers with decimals.
df.dtypes
record_id int64
month int64
day int64
year int64
plot_id int64
species_id object
sex object
hindfoot_length float64
weight float64
dtype: object
We can also use the info() method to output some general information about the dataframe:
print(df.info())
<class 'pandas.core.frame.DataFrame'>
Index: 32283 entries, 62 to 35547
Data columns (total 10 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 record_id 32283 non-null int64
1 month 32283 non-null int64
2 day 32283 non-null int64
3 year 32283 non-null int64
4 plot_id 32283 non-null int64
5 species_id 32283 non-null object
6 sex 32283 non-null object
7 hindfoot_length 32283 non-null float64
8 weight 32283 non-null float64
9 weight_imputed 32283 non-null float64
dtypes: float64(3), int64(5), object(2)
memory usage: 2.7+ MB
None
Useful Ways to View DataFrame objects in Python
There are multiple methods that can be used to summarize and access the data
stored in DataFrames. Note that we call the method by using
the object or method name df.object or df.method(). So df.columns provides an index
of all of the column names in our DataFrame.
Querying DataFrames
There are several methods that allow you to inspect your DataFrame.
Print the column names:
df.columnsPrint the first
4lines of the DataFramedf.head(4)Print the last
4lines of the DataFramedf.tail(4)Print the dimensions of the DataFrame
df.shape
Summarizing Data in a Pandas DataFrame
We’ve read our data into Python. Next, let’s perform some quick summaries of the DataFrame to learn more about the data that we’re working with. We might want to know how many animals were collected in each plot, or how many of each species were caught. We can summarize different aspects of our data using groups. But first we need to figure out what we want to group by.
Let’s begin by exploring our data and view the column names:
df.columns
Index(['record_id', 'month', 'day', 'year', 'plot_id', 'species_id', 'sex',
'hindfoot_length', 'weight'], dtype=object)
Let’s get a list of all the species. The pd.unique method tells us all of
the unique values in the species_id column. These are two-character identifiers of the species names (e.g., NL represents the rodent Neotoma albigula).
pd.unique(df['species_id'])
array(['NL', 'DM', 'PF', 'PE', 'DS', 'PP', 'SH', 'OT', 'DO', 'OX', 'SS',
'OL', 'RM', nan, 'SA', 'PM', 'AH', 'DX', 'AB', 'CB', 'CM', 'CQ',
'RF', 'PC', 'PG', 'PH', 'PU', 'CV', 'UR', 'UP', 'ZL', 'UL', 'CS',
'SC', 'BA', 'SF', 'RO', 'AS', 'SO', 'PI', 'ST', 'CU', 'SU', 'RX',
'PB', 'PL', 'PX', 'CT', 'US'], dtype=object)
How many plots were recorded for this dataset?
Create a list of unique plot ID’s found in the surveys data. Call it
plot_names. How many unique plots are there in the data?Is there a simpler solution for doing this?
Solution
# 1 plot_names = list(pd.unique(df['plot_id'])) print(len(plot_names)) # 2 print(df['plot_id'].nunique())Note that the
.nunique()method does not count null (i.e.,nan) values.
Groups in Pandas
n Pandas, grouping refers to the process of splitting a DataFrame or Series into multiple groups based on one or more criteria. The resulting groups can then be used to perform various operations, such as aggregation, transformation, or filtering. For instance, By using value_counts() in Pandas, you can efficiently group data by a specific column, such as ‘species_id’, and obtain a clear overview of the distribution of values within that column. This is a valuable tool for understanding the composition of categorical data and identifying patterns or imbalances in the dataset.
# Values with their counts in a particular column
df['species_id'].value_counts()
species_id
DM 10596
PP 3123
DO 3027
PB 2891
RM 2609
DS 2504
OT 2249
PF 1597
PE 1299
NL 1252
OL 1006
PM 899
AH 437
AB 303
SS 248
SH 147
SA 75
RF 75
CB 50
BA 46
SO 43
SF 43
DX 40
PC 39
PL 36
PH 32
CQ 16
CM 13
OX 12
UR 10
PI 9
UP 8
PG 8
RO 8
PX 6
SU 5
PU 5
US 4
UL 4
AS 2
RX 2
ZL 2
ST 1
CU 1
SC 1
CS 1
CT 1
CV 1
Name: count, dtype: int64
To calculate fractions, pass normalize=True to the value_counts function.
df["species_id"].value_counts(normalize=True)
species_id
DM 0.317876
PP 0.093672
DO 0.089954
PB 0.087043
RM 0.078524
DS 0.072608
OT 0.066908
PF 0.047951
PE 0.039030
NL 0.035684
OL 0.030047
PM 0.027135
SH 0.004368
RF 0.002323
BA 0.001394
SF 0.001270
SO 0.001270
PL 0.001115
PH 0.000960
RO 0.000248
PI 0.000248
OX 0.000186
SS 0.000062
RX 0.000062
PX 0.000062
Name: proportion, dtype: float64
We also often want to calculate summary statistics grouped by subsets or attributes within fields of our data. For example, we might want to calculate the average weight of all individuals per plot.
We can calculate basic statistics for all records in a single column using the
.describe() method:
df['weight'].describe()
count 32283.000000
mean 42.672428
std 36.631259
min 4.000000
25% 20.000000
50% 37.000000
75% 48.000000
max 280.000000
Name: weight, dtype: float64
We can also extract one specific metric if we wish:
Like the lowest weight
df['weight'].min()
4.0
The maximum weight
df['weight'].max()
280.0
The mean of the weight column
df['weight'].mean()
42.672428212991356
The standard deviation of the weight
df['weight'].std()
36.63125947458399
Count the number of observations made for weight:
df['weight'].count()
32283
But if we want to summarize by one or more variables, for example the weight for each sex, we need to
use the Pandas DataFrame .groupby() method. Once we’ve created a re-orgaized DataFrame, we
can quickly calculate summary statistics by a group of our choice.
Group data by the sex of each observed individual:
sorted_df = df.groupby('sex')
The method .describe() will return descriptive stats including: mean,
median, max, min, std and count for a particular column in the data. Pandas’
.describe() method will only return summary values for columns containing
numeric data.
With the sorted data, we can obtain the summary statistics for the weight column separated by sex.
sorted_df['weight'].describe()
count mean std min 25% 50% 75% max
sex
F 15303.0 42.170555 36.847958 4.0 20.0 34.0 46.0 274.0
M 16879.0 42.995379 36.184981 4.0 20.0 39.0 49.0 280.0
We can also get the mean for each numeric-valued column, grouped by sex:
sorted_df.mean()
The .groupby() method is powerful in that it allows us to quickly generate
summaries of categorical data.
How many individuals were recorded as female and how many were male?
Using the
.describe()method on the DataFrame sorted by sex, determine how many individuals were observed for each.Solution
Female = 15690
Male = 17348
A DataFrame can be sorted by the value of one of the variables (i.e columns). For example, we can sort by Total day charge (use ascending=False to sort in descending order):
df.sort_values(by="species_id", ascending=False).head()
record_id month day year plot_id species_id sex hindfoot_length weight weight_imputed
4874 4875 10 24 1981 20 SS F 31.0 57.0 57.0
1001 1002 6 9 1978 14 SS M 31.0 130.0 130.0
19732 19733 2 7 1992 3 SO F 25.0 39.0 39.0
19977 19978 5 3 1992 3 SO F 27.0 105.0 105.0
19216 19217 11 13 1991 2 SO F 21.0 42.0 42.0
We can also sort by multiple columns:
df.sort_values(by=["species_id","sex"], ascending=[True, False]).head()
record_id month day year plot_id species_id sex hindfoot_length weight weight_imputed
16597 16598 11 4 1989 21 BA M 13.0 7.0 7.0
16598 16599 11 4 1989 21 BA M 12.0 6.0 6.0
16853 16854 12 5 1989 3 BA M 14.0 8.0 8.0
17173 17174 2 25 1990 5 BA M 14.0 7.0 7.0
17373 17374 4 24 1990 1 BA M 14.0 7.0 7.0
Group by two columns
What happens when you group by two columns and then view mean values:
- Hint: you can use a list in the arguments of the
.groupby()method,['plot_id','sex']Solution
sorted_df2 = surveys_df.groupby(['plot_id','sex']) sorted_df2.mean()
Summarize a single column
Summarize weight values for each plot in your data.
Solution
by_plot = df.groupby('plot_id') by_plot['weight'].describe()
Quickly Creating Summary Counts in Pandas
Let’s next count the number of samples for each species. We can do this in a few
ways, but we’ll use groupby combined with a count() method.
species_counts = df.groupby('species_id')['record_id'].count()
species_counts
species_id
AB 303
AH 437
AS 2
BA 46
CB 50
CM 13
CQ 16
...
Or, we can also count just the rows that have the species “PL” (Peromyscus leucopus):
df.groupby('species_id')['record_id'].count()['PL']
36
Treating missing values
Treating missing values in a dataset is a crucial step in data preprocessing to ensure the accuracy and reliability of the analysis. When dealing with missing values in Pandas, there are several common strategies for handling them effectively
Identifying Missing Values
Use methods like isnull() or isna()to identify missing values in the dataset. Apply `sum() to count the number of missing values in each column, as shown in df.isnull().sum() on the entire dataframe.
# on whole df.
df.isnull().sum()
record_id 0
month 0
day 0
year 0
plot_id 0
species_id 763
sex 2511
hindfoot_length 4111
weight 3266
Knowing the distribution of missing values across different columns is crucial for making informed decisions about data quality and the appropriate data handling techniques to use in your analysis.
# on a particular column
df['sex'].isnull().sum()
2511
The code df['sex'].isnull().sum() in Pandas is used to count the number of missing or null values in the sex column of the DataFrame df.
Handling Missing Values
Handling missing values in a dataset is a critical aspect of data preprocessing to ensure the accuracy and reliability of data analysis. Various methods can be employed to effectively manage missing values in a dataset.
There are several methods to handle missing values. Each method has its own advantages and disadvantages. The choice of the method is subjective and depends on the nature of data and the missing values. In this section, I have listed the most commonly used methods to deal with missing values. They are as follows:-
-
Drop missing values with dropna() method
-
Fill missing values with zeros
-
Fill missing values with a test statistic (e.g zscore)
-
Fill missing values backward or forward
Drop Missing Values
# You can also check the percentage of missing values
missing_percentage_sex = df['sex'].isnull().mean() * 100
missing_percentage_sex
7.063489830937579
df_sex = df.dropna(subset=['sex'])
df_sex.head()
record_id month day year plot_id species_id sex hindfoot_length weight
0 1 7 16 1977 2 NL M 32.0 NaN
1 2 7 16 1977 3 NL M 33.0 NaN
2 3 7 16 1977 2 DM F 37.0 NaN
3 4 7 16 1977 7 DM M 36.0 NaN
4 5 7 16 1977 3 DM M 35.0 NaN
Missing values imputation with zscore
The z-score method is a common approach for identifying and imputing missing values in a dataset. The key steps involved are:
- Calculating the z-score for each data point:
- The z-score is a standardized measure that represents how many standard deviations a data point is from the mean.
- It is calculated as: $z = \frac{x - \mu}{\sigma}$, where x is the data point, μ is the mean, and σ is the standard deviation.
- Identifying potential values to impute missing data:
- The z-score method compares the z-scores of the non-missing values to identify potential values that could be used to impute the missing ones.
- This is based on the idea that data points with similar z-scores are likely to have similar underlying values.
- Imputing the missing values:
- Once the potential imputation values are identified, the missing values can be replaced with the most appropriate value, such as the mean or median of the similar z-score data points.
# Import the zscore function from scipy.stats
from scipy.stats import zscore
# Drop rows with missing values in the 'weight' column
df.dropna(subset=['weight'], inplace=True)
# Calculate z-scores for the 'weight' column
df['weight_zscore'] = zscore(df['weight'])
mean_weight = df['weight'].mean()
std_weight = df['weight'].std()
# Function to impute missing values using z-score
def impute_missing_with_zscore(row):
if pd.isnull(row['weight']):
return (row['weight_zscore'] * std_weight) + mean_weight
else:
return row['weight']
# Apply the imputation function to fill missing values in 'weight' column
df['weight_imputed'] = df.apply(impute_missing_with_zscore, axis=1)
# Drop the intermediate 'weight_zscore' column if needed
df.drop(columns=['weight_zscore'], inplace=True)
df.head()
record_id month day year plot_id species_id sex hindfoot_length weight weight_imputed
62 63 8 19 1977 3 DM M 35.0 40.0 40.0
63 64 8 19 1977 7 DM M 37.0 48.0 48.0
64 65 8 19 1977 4 DM F 34.0 29.0 29.0
65 66 8 19 1977 4 DM F 35.0 46.0 46.0
66 67 8 19 1977 7 DM M 35.0 36.0 36.0
imputation with median
df['hindfoot_length'] = df['hindfoot_length'].fillna(df['hindfoot_length'].median())
df.head()
record_id month day year plot_id species_id sex hindfoot_length weight weight_imputed
62 63 8 19 1977 3 DM M 35.0 40.0 40.0
63 64 8 19 1977 7 DM M 37.0 48.0 48.0
64 65 8 19 1977 4 DM F 34.0 29.0 29.0
65 66 8 19 1977 4 DM F 35.0 46.0 46.0
66 67 8 19 1977 7 DM M 35.0 36.0 36.0
forward fill impuation
# Impute missing values using forward fill (ffill)
df['sex'] = df['sex'].ffill()
Basic Math Functions
If we wanted to, we could perform math on an entire column of our data. For example let’s multiply all weight values by 2. A more practical use of this might be to normalize the data according to a mean, area, or some other value calculated from our data.
Multiply all weight values by 2 and store values in a Pandas object called double_weight:
double_weight = df['weight'] * 2
If we summarize double_weight, then the summary will indicate that these values are twice the original weights:
double_weight.describe()
count 32283.000000
mean 85.344856
std 73.262519
min 8.000000
25% 40.000000
50% 74.000000
75% 96.000000
max 560.000000
Name: weight, dtype: float64
Quick & Easy Plotting Using Pandas
We can plot our summary stats using Pandas, too.

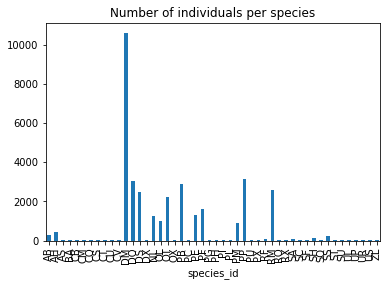

Now, we can make a quick bar chart of the species counts
species_counts.plot(kind='bar',title='Number of individuals per species')
We can also look at how many animals were captured in each plot:
total_count = df.groupby('plot_id')['record_id'].nunique()
And plot a bar chart describing the number of individuals captured at each plot. Also, let’s make it so that all of the bars are colored green.
total_count.plot(kind='bar',title='Number captured per plot', color='green')
Plot the average weight across all species in each plot
Create a bar plot that shows the average weight of all of the animals captured in that plot. Also, choose an interesting or pleasing color from the list of named web colors.
Solution
plot_weight_means = surveys_df.groupby('plot_id')['weight'].mean() plot_weight_means.plot(kind='bar',title='Average Weight (g)',color='LightSeaGreen')
Plot the number of females and the number of males in the dataset
Create a bar plot that shows the total number of each sex captured for the entire dataset.
Solution
counts_by_sex = surveys_df['record_id'].groupby(surveys_df['sex']).count() counts_by_sex.plot(kind='bar',title='Number captured for each sex',color=['k', 'r'])
More Fun with Plotting
Now we will plot something a little bit more difficult. We will use a stacked bar plot to show how both weight and sex are distributed across each plot in the study.
First we group data by plot and by sex, and then calculate a total for each plot.
by_plot_sex = surveys_df.groupby(['plot_id','sex'])
plot_sex_count = by_plot_sex['weight'].sum()
plot_sex_count
This calculates the sums of weights for each sex within each plot as a table
plot sex
plot_id sex
1 F 38253
M 59979
2 F 50144
M 57250
3 F 27251
M 28253
4 F 39796
M 49377
...
Then we’ll use .unstack() on our grouped data to figure out the total weight that each sex contributed to each plot.
plot_sex_count.unstack()
sex F M
plot_id
1 38253.0 59979.0
2 50144.0 57250.0
3 27251.0 28253.0
4 39796.0 49377.0
5 21143.0 23326.0
6 26210.0 27245.0
7 6522.0 6422.0
...
Now, create a stacked bar plot with those data where the weights for each sex are stacked by plot.
spc = plot_sex_count.unstack()
s_plot = spc.plot(kind='bar',stacked=True,title="Total weight by plot and sex")
s_plot.set_ylabel("Weight (g)")
s_plot.set_xlabel("Plot")
Facet Plot
A facet plot, also known as a trellis plot or small multiple plot, is a visualization technique that displays multiple plots or graphs in a grid arrangement. Each subplot in the grid represents a subset of the data, often distinguished by one or more categorical variables
import seaborn as sns
import matplotlib.pyplot as plt
# Grouping by plot_id and sex, and summing the weight
plot_sex_count = df.groupby(['plot_id', 'sex'])['weight'].sum().reset_index()
# Unstacking the dataframe
spc = plot_sex_count.pivot(index='plot_id', columns='sex', values='weight')
# Define custom colors for the sex categories
custom_palette = {"M": "blue", "F": "red"}
# Creating the facet grid with adjusted size and aspect ratio
g = sns.FacetGrid(plot_sex_count, col="sex", height=5, aspect=2)
g.map_dataframe(sns.barplot, x='plot_id', y='weight', hue='sex', palette=custom_palette,alpha=0.5)
g.set_axis_labels("Plot", "Weight(g)")
# Adjusting the facet grid layout
g.fig.tight_layout()
# Applying the figure size to the FacetGrid object
g.fig.set_figwidth(10)
g.fig.set_figheight(5)
plt.savefig("pandas_plot_sex_count_survey.png")
plt.show()
The above code snippet is :
- A facet grid plot is generated using the Seaborn library in Python.
- The data is grouped by ‘plot_id’ and ‘sex’, and the weight is summed within each group.
- Subplots are created for each unique value of the ‘sex’ variable, arranged in a grid layout.
- Bar plots are plotted within each subplot, showing the distribution of weight across different plot IDs.
- Customization options such as axis labels and color palettes are applied to enhance readability and interpretation.
- The size of the entire figure is adjusted to ensure proper visualization.
- Finally, the plot is saved as an image file and displayed for analysis.
Let’s also make a summary table and a picture with cross tabulation
pd.crosstab(df["species"], df["sex"], margins=True)
sex F M All
species_id
BA 31 14 45
DM 4444 5818 10262
DO 1280 1624 2904
DS 1118 1226 2344
NL 659 493 1152
OL 472 498 970
OT 1031 1129 2160
OX 2 4 6
PB 1621 1189 2810
PE 569 691 1260
PF 745 803 1548
PH 20 11 31
PI 1 7 8
PL 16 20 36
PM 375 501 876
PP 1585 1439 3024
PX 1 1 2
RF 57 18 75
RM 1189 1346 2535
RO 4 4 8
RX 0 2 2
SF 17 24 41
SH 78 63 141
SO 31 10 41
SS 1 1 2
All 15347 16936 32283

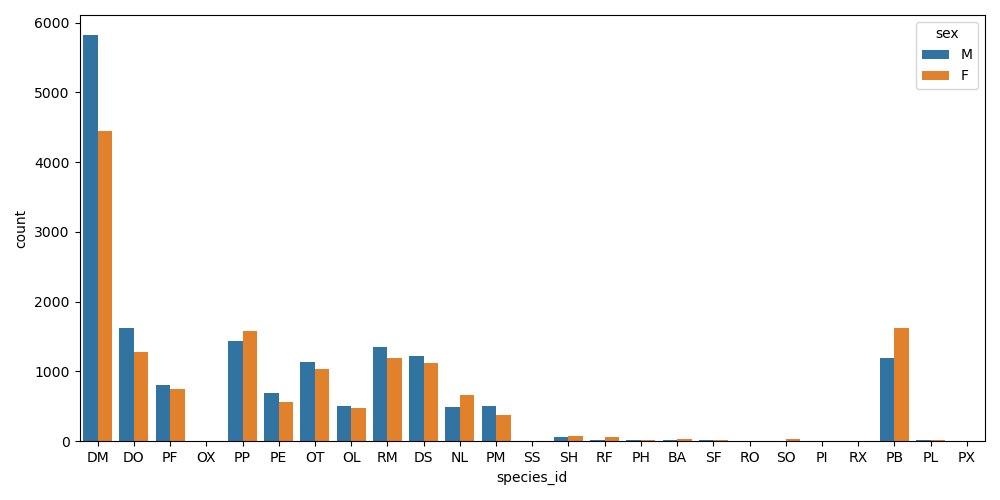

import seaborn as sns
import matplotlib.pyplot as plt
# Set the figure size to (10, 5)
fig, ax = plt.subplots(figsize=(10, 5))
# Create the countplot
sns.countplot(x="species_id", hue="sex", data=df, ax=ax)
# Adjusting the facet grid layout
plt.tight_layout()
# Save the plot
plt.savefig("species_id_sex_countplot.png")
# Show the plot
plt.show()
Take-Home Challenge: More Fun with DataFrames and Plotting
Continue working with the
surveys_dfDataFrame on the following challenges:
Plot the average weight over all species and plots sampled each year (i.e., year on the horizontal axis and average weight on the vertical axis).
Come up with another way to view and/or summarize the observations in this dataset. What do you learn from this?
Solutions
The solutions will be posted in a few days. Feel free to use the
#scripting_helpchannel in Slack to discuss these exercises.
Key Points
Python can be used to work with complex data structures.
Pandas is a powerful tool for dealing with tabular data.
You can easily summarize data.
There are ways to readily visualize summaries.
